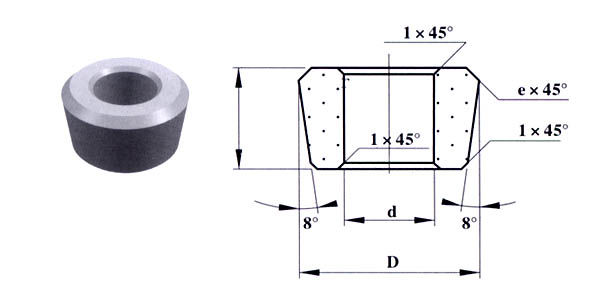

Type 30

Carbide floating plugs for drawing metal tubes

Type

d

H

D

e

30-

4

10

11

1

6

12

13, 15

1

8

12

17

1

10

14

19.5, 21.5

1

12

16

23.5

1

14

16

25.5, 27.5

1-2

17

27

28-37

2

19

27

38.2, 39.4

2

21

27

40-43

3

23

32

44-46

3-4

25

32

47-53

4

27

32

54-57

4

28

35

58-64

4

All dimensions in (mm)
